Planetary Concrete Grinding Machine
video
Planetary Concrete Grinding Machine

Planetary Concrete Grinding Machine

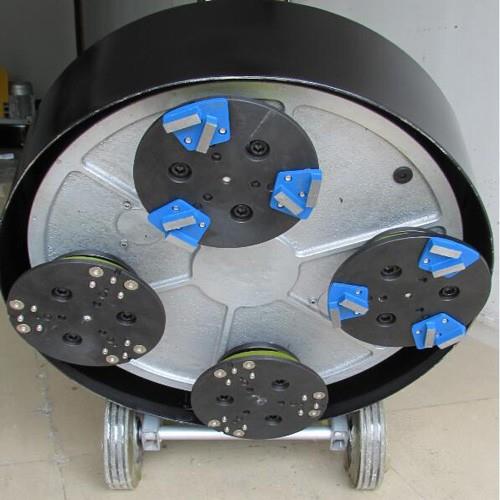

G800 is heavy duty planetary concrete grinding machine with big motor and inverter
Unique multiple seal design to prevent dust and mud entering gearbox and extend the lifetime and maintenance period of oil seals and other parts
Send Inquiry

Product Introduction

Model

G800A

G800B

Voltage

380-440V, three phases

220-240v,single phase

Motor

11kw

11kw

Inverter

11kw

15kw

Main plate speed

50-350rpm

50-350rpm

Planetary plate speed

0-1800rpm

0-1800rpm

Grinding width

800mm

800mm

Grinding plate diameter

250mm*4

250mm*4

Water tank

35L

35L

Weight

280kg

280kg

Extra weight

50kg

50kg


1. G800 is heavy duty planetary concrete grinding machine with big motor and inverter

2. Unique multiple seal design to prevent dust and mud entering gearbox and extend the lifetime and maintenance period of oil seals and other parts

3. High efficiency aluminum shell motor with good heat dissipation and better performance

4. Famous inverter for speed adjustable and simple operation and trouble shooting

5. More humanized design with adjustable angle handle and big capacity water tank to reduce labor intensity and increase work efficiency

6. Ideal machine for large area concrete floor grinding needs
